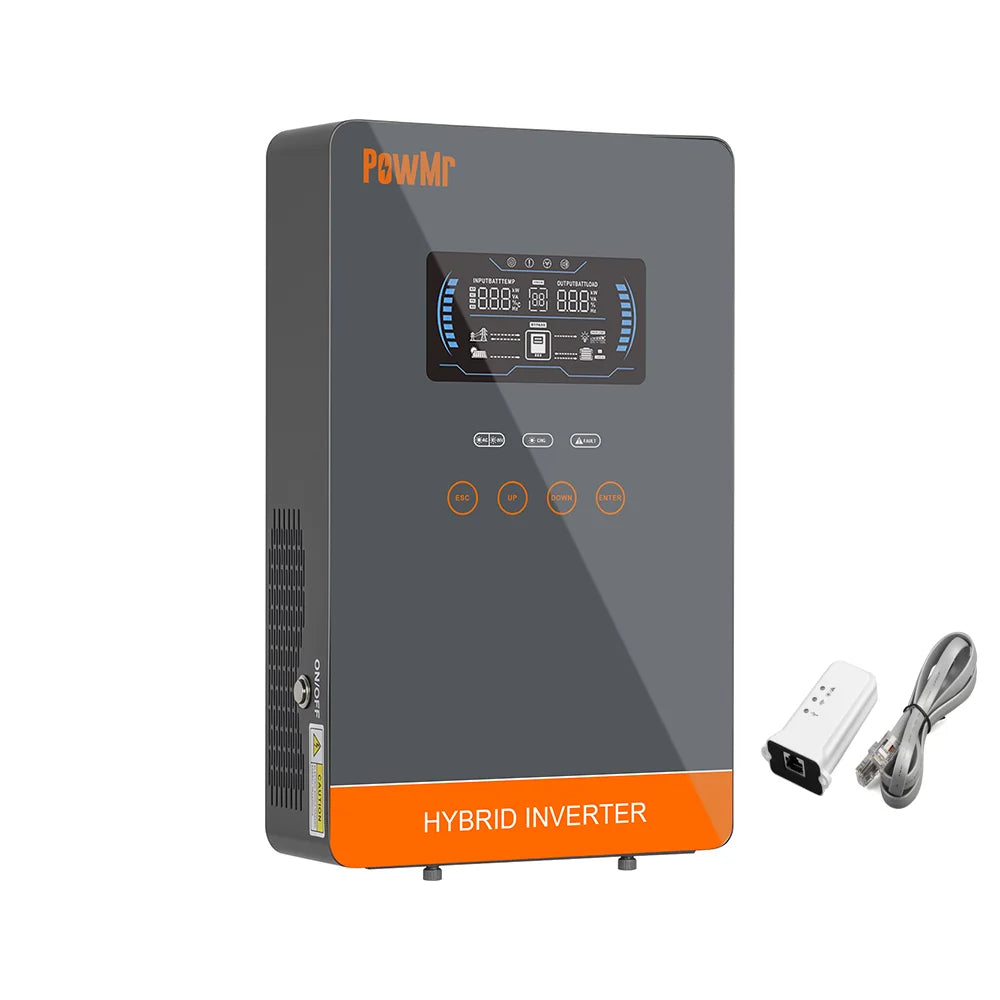

POWMr 24V 4000W Solar Inverter 24VDC to 110VAC 140A MPPT Pure Sine Wave Off Grid Inverter with LCD Display Built in Lithium BMS Communication for Home RV Inversor
POWMr 24V 4000W Solar Inverter 24VDC to 110VAC 140A MPPT Pure Sine Wave Off Grid Inverter with LCD Display Built in Lithium BMS Communication for Home RV Inversor
Couldn't load pickup availability

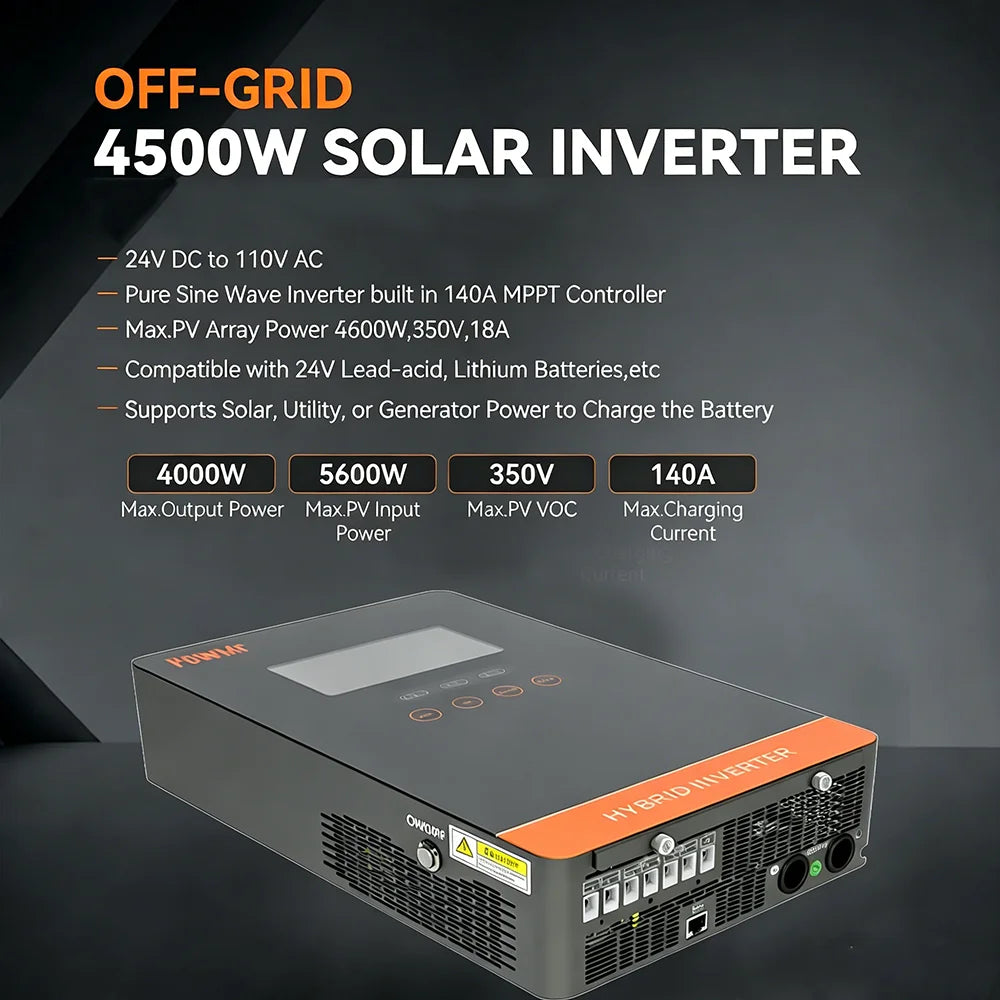

Keep your home appliances or farm tools supplied with off-grid power from this 24V solar inverter, with pure sine wave output rated at 4kW/4kVA.
- 110/120VAC output: Choose between 110V and 120V AC output, with 50Hz/60Hz frequency detection for your setup.
- Solar charging: The built-in 140A MPPT controller supports a 55–350VDC PV range and solar arrays up to 5600W.

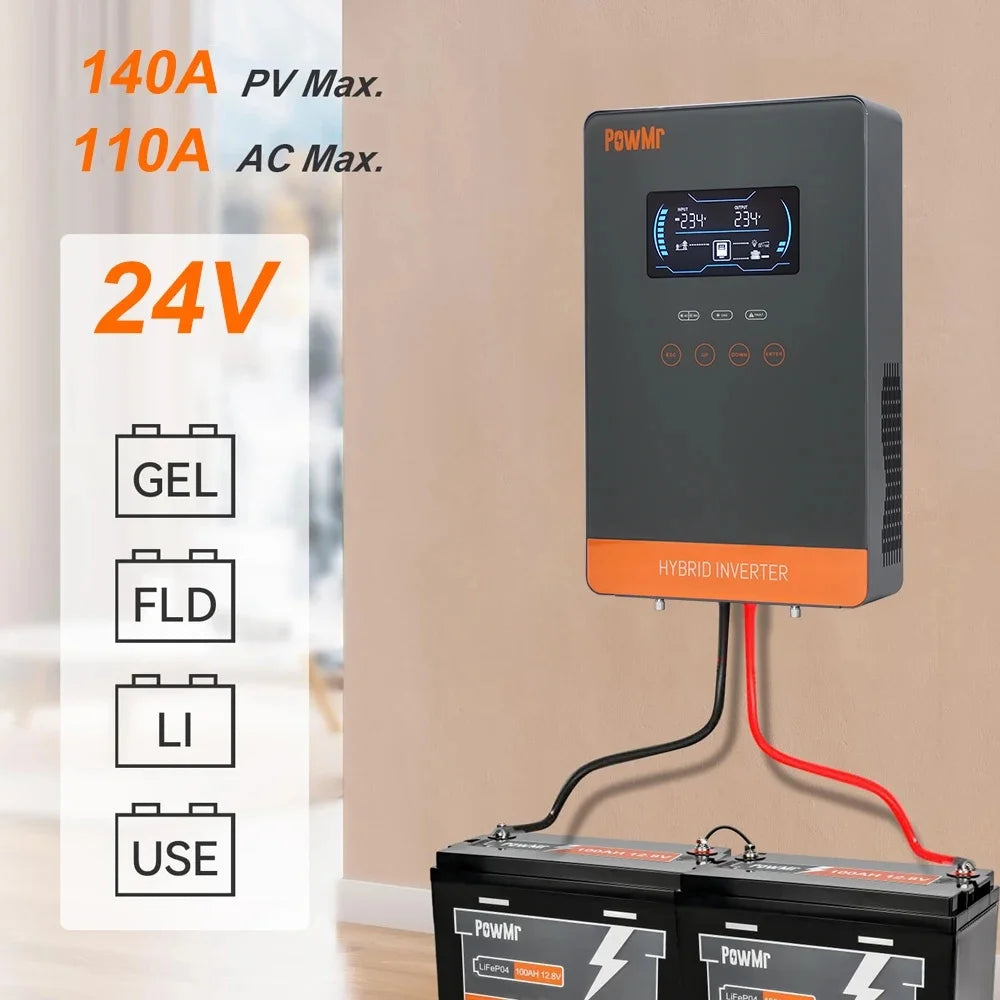

- Battery options: Connect a 24VDC lithium or lead-acid battery, including flooded and gel types, to suit your system.

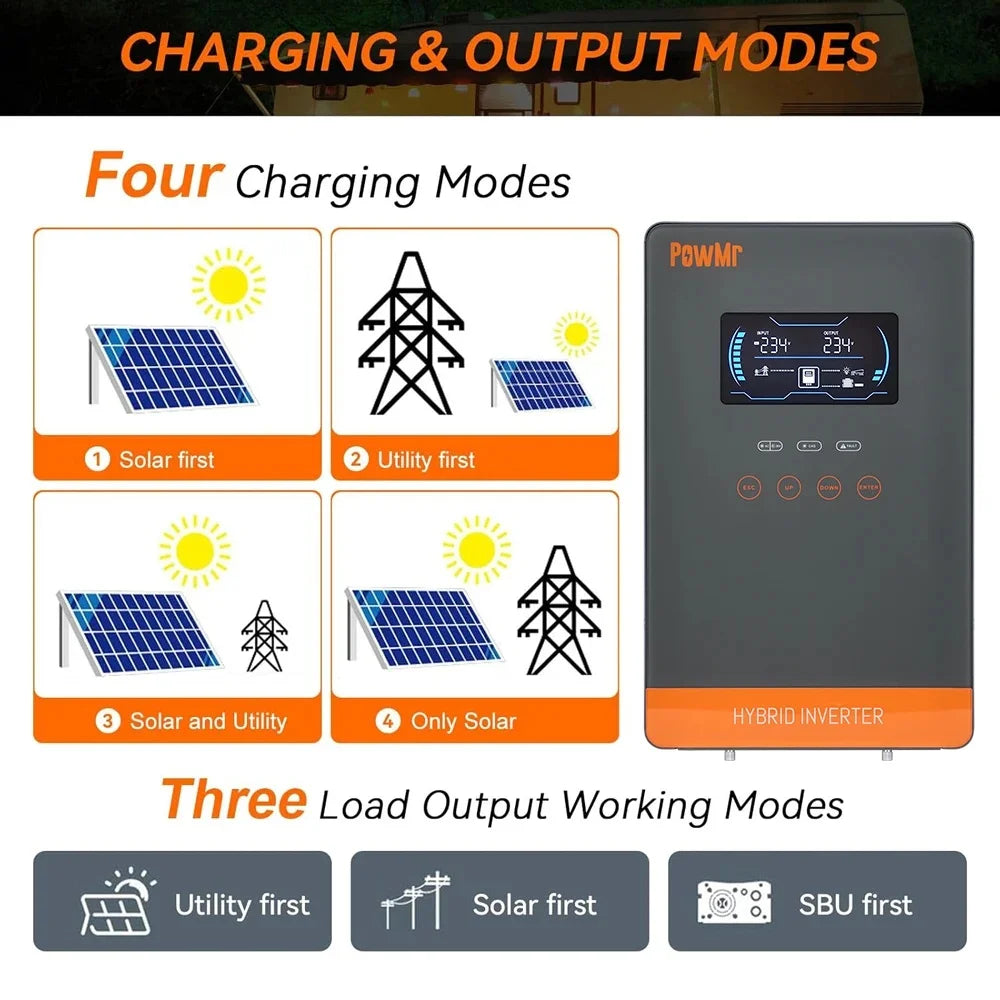

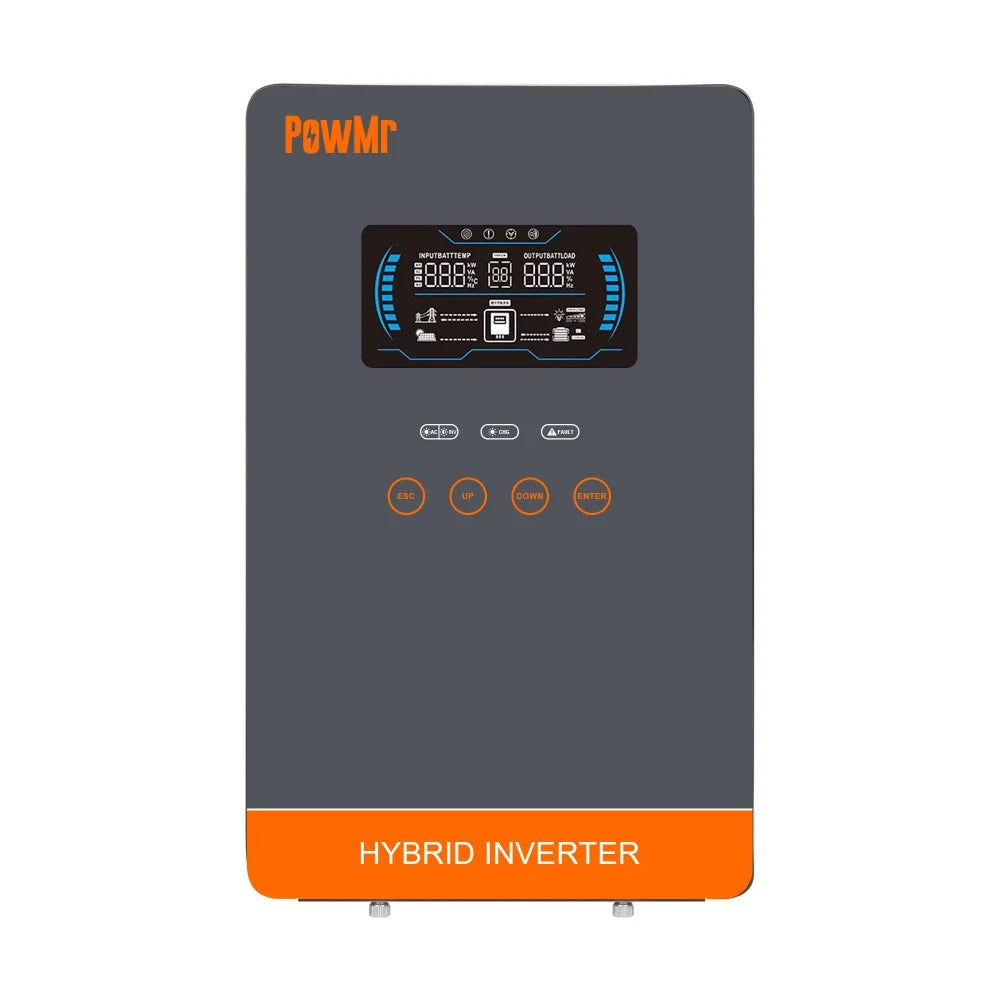

- Clear controls and protection: Use the 6.25-inch LCD and touch buttons to set input priorities; overload, over-temperature, and output short-circuit protection help safeguard operation.
MODEL |
POW-LVM4-24V |
Picture |
|
Rated Output Power |
4KVA/4KW |
Battery Voltage |
24VDC |
Battery Tape |
Lead-acid battery and lithium battery |
Nominal Input Voltage |
120VAC |
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
Efficiency |
>95% ( Rated R load, battery full charged) |
Output Voltage Waveform |
Pure Sine Wave |
Floating Charging Voltage |
27VDC |
Charging Algorithm |
3-Step |
Max. PV Array Power |
5600W |
Max. PV Current |
13A |
Nominal PV Voltage |
350VDC |
Start-up Voltage |
55VDC ± 10VDC |
PV Array MPPT Voltage Range |
55VDC~350VDC |
Max. PV Array Open Circuit Voltage |
350VDC |
Max Charging Current |
140Amp |
Safety Certification |
CE |
Operating Temperature Range |
0℃ to 55℃ |
Storage temperature |
-15℃~ 60℃ |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
Dimension (D*W*H), mm |
400x250x89 |
Net Weight, kg |
7.85 |
