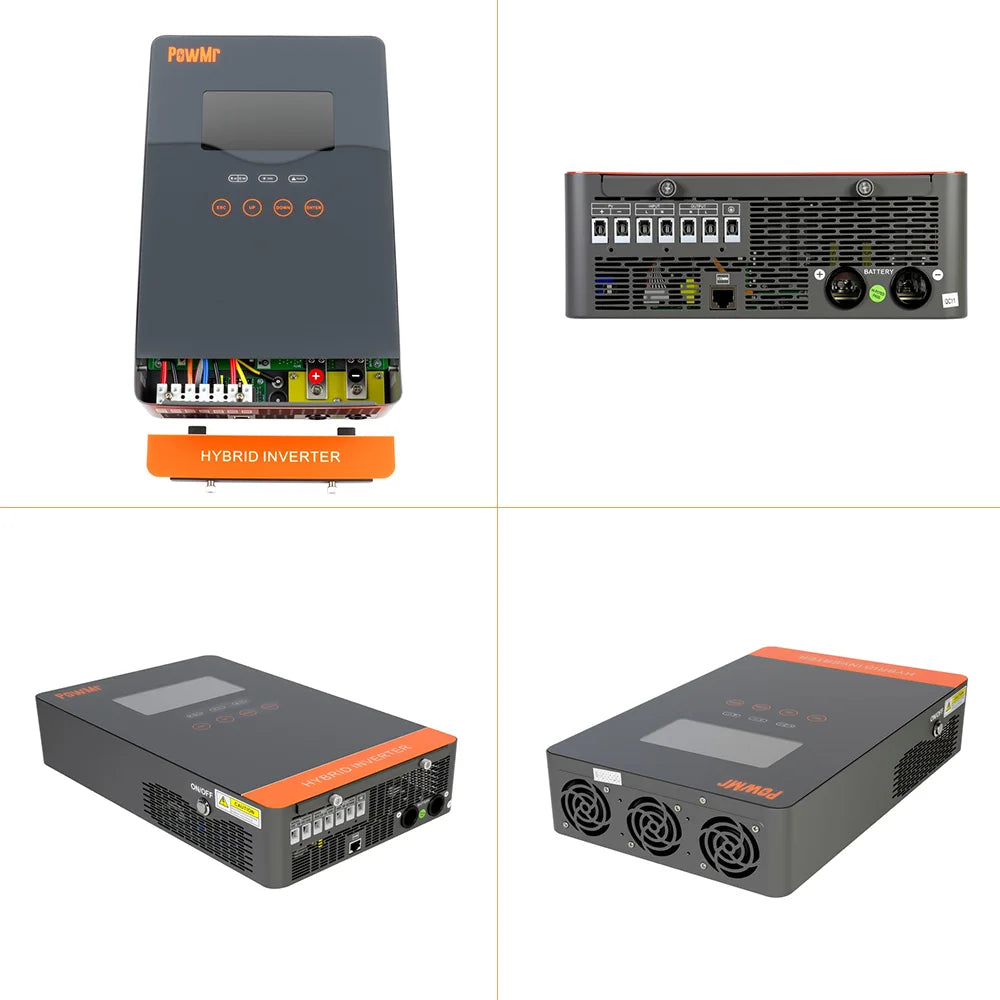

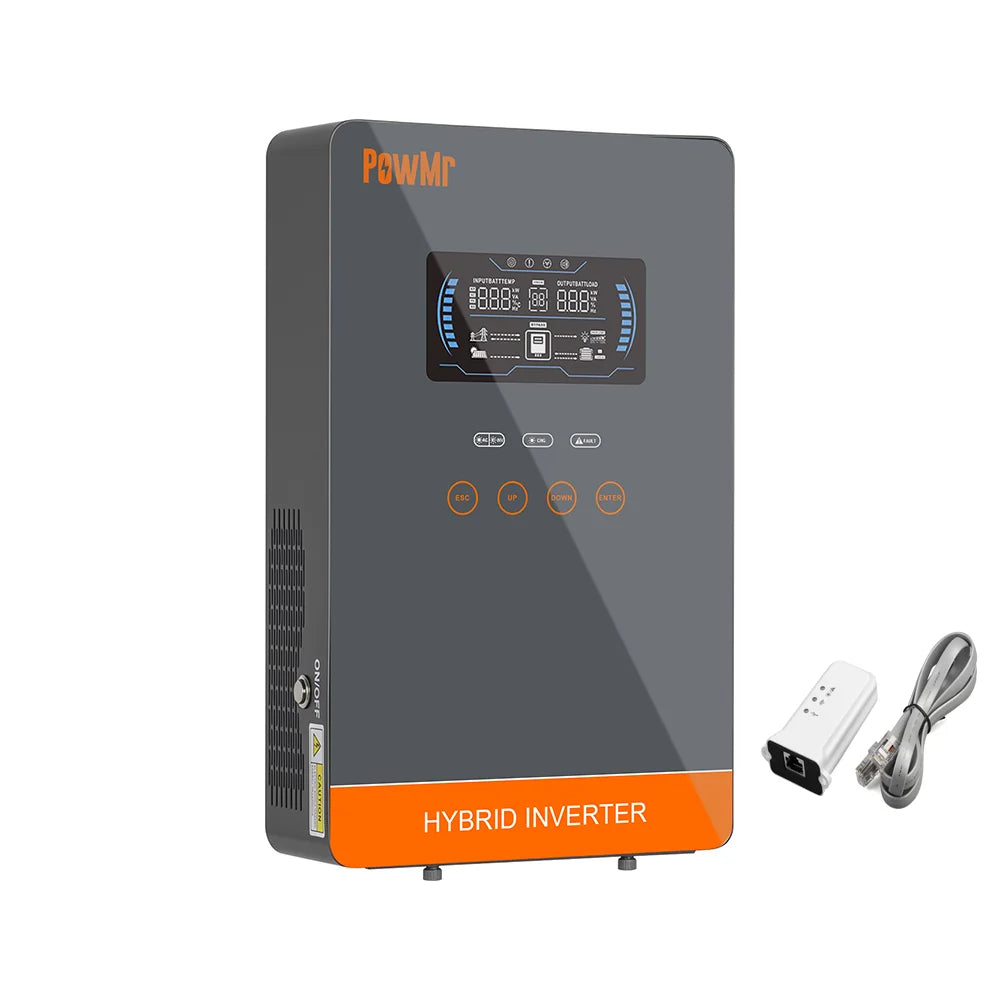

POWMr 24V 4000W Solar Inverter 24VDC to 110VAC 140A MPPT Pure Sine Wave Off Grid Inverter with LCD Display Built in Lithium BMS Communication for Home RV Inversor
POWMr 24V 4000W Solar Inverter 24VDC to 110VAC 140A MPPT Pure Sine Wave Off Grid Inverter with LCD Display Built in Lithium BMS Communication for Home RV Inversor
Couldn't load pickup availability
Manage off-grid power for your home or RV with a 4,000W inverter that combines 24V battery input, solar charging, and flexible power priorities.
- Pure sine wave output: Supply household appliances or farm tools with 110VAC or 120VAC output at 50Hz or 60Hz.

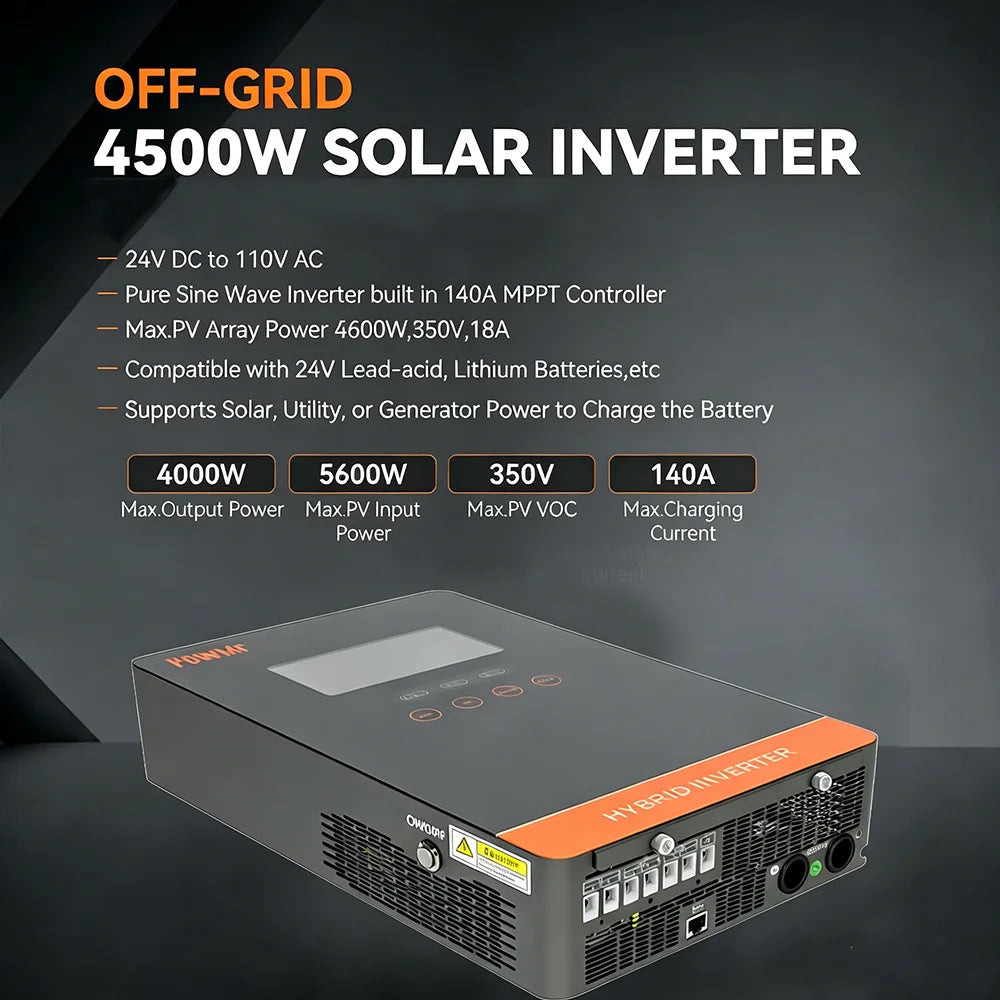

- 140A MPPT charging: Connect a solar array up to 5,600W, with a PV input range of 55–350VDC.

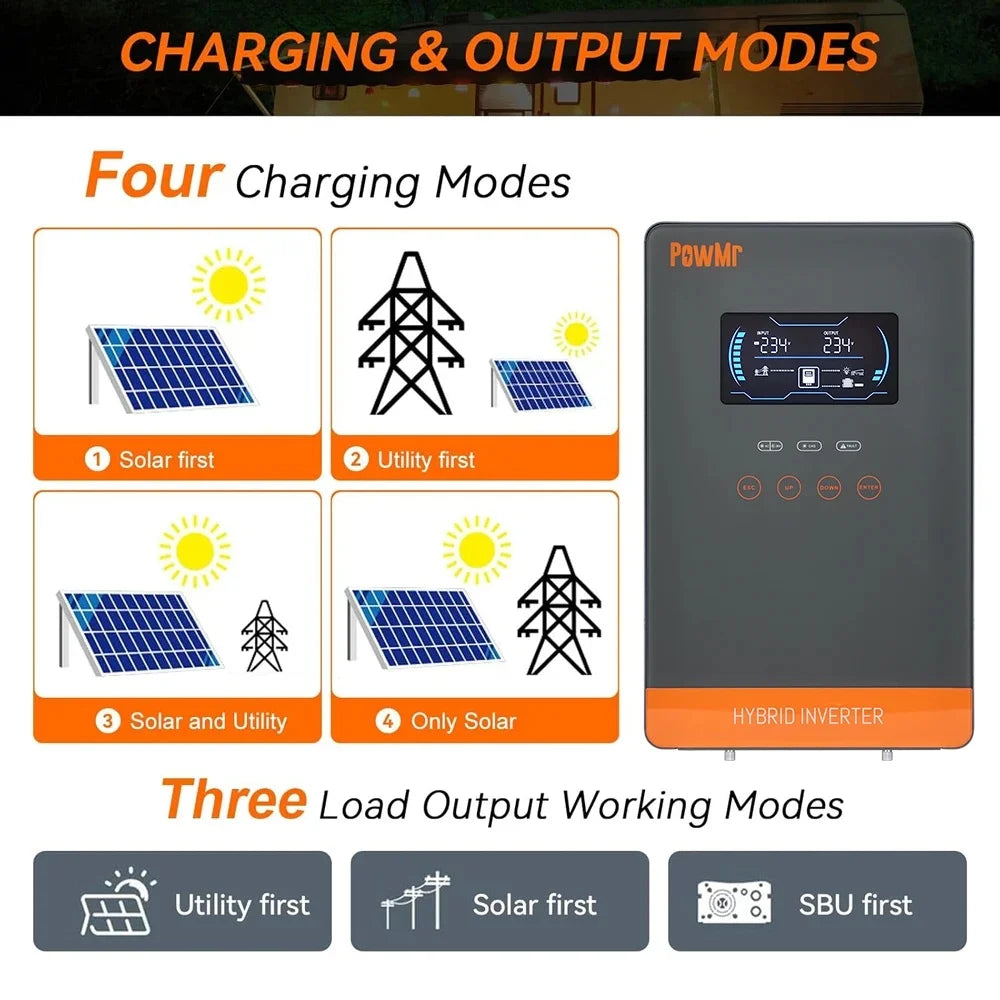

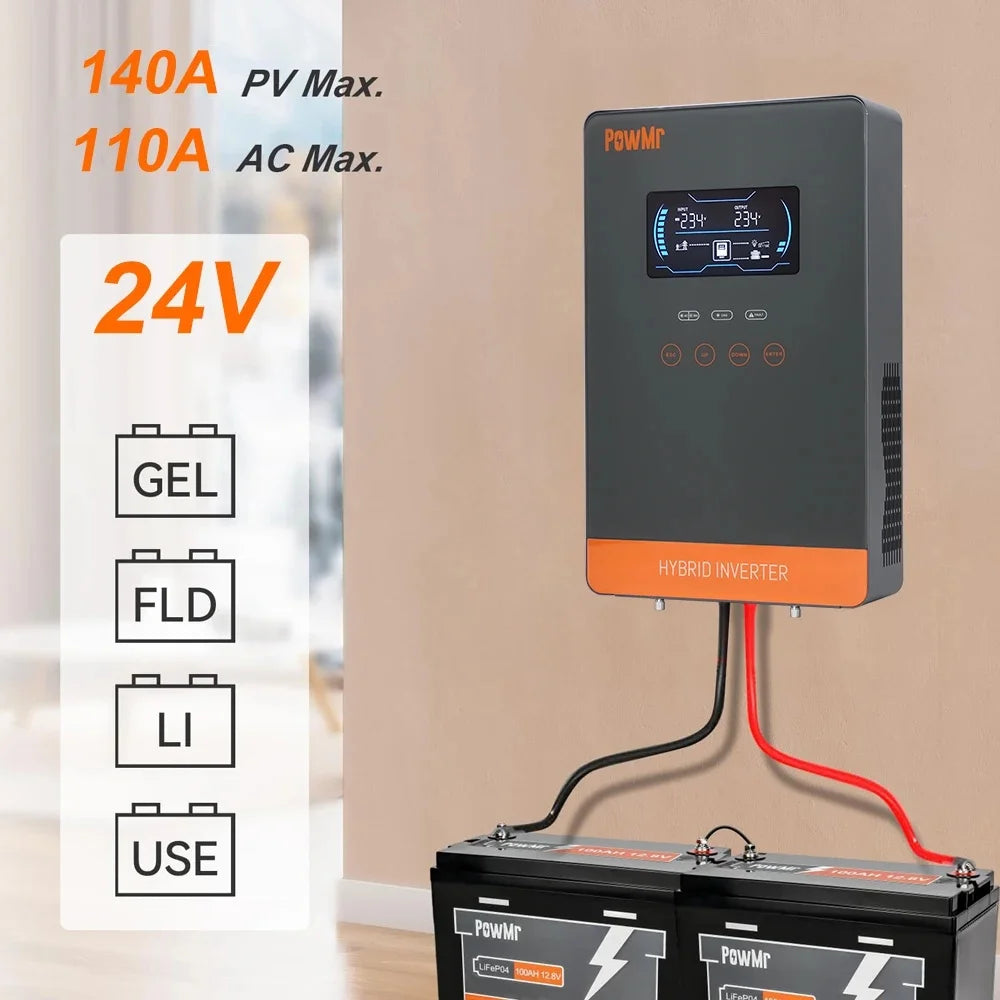

- Battery flexibility: Use compatible lithium, lead-acid, flooded, or gel batteries, then set AC or battery input priority through the LCD.

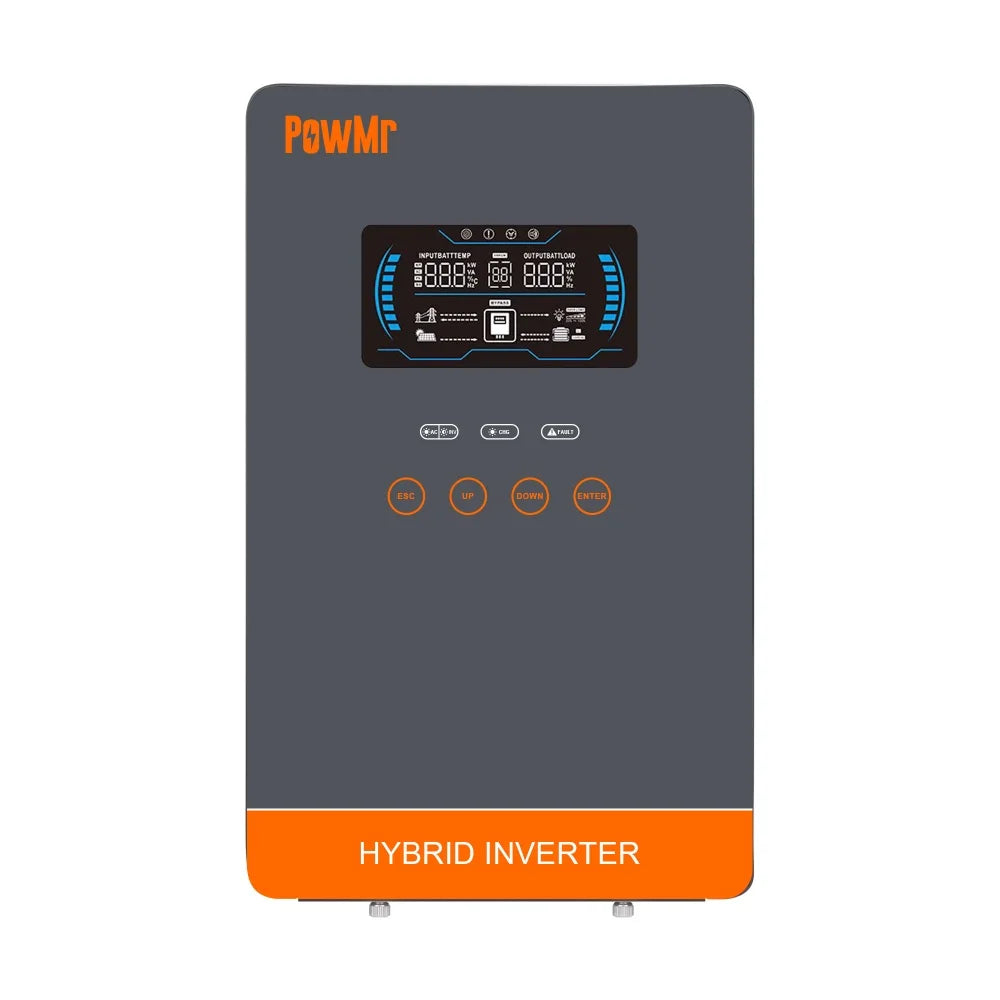

- Clear controls and protection: Check settings on the 6.25-inch LCD with touch buttons; overload, over-temperature, and output short-circuit protection support system safety.
MODEL |
POW-LVM4-24V |
Picture |
|
Rated Output Power |
4KVA/4KW |
Battery Voltage |
24VDC |
Battery Tape |
Lead-acid battery and lithium battery |
Nominal Input Voltage |
120VAC |
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
Efficiency |
>95% ( Rated R load, battery full charged) |
Output Voltage Waveform |
Pure Sine Wave |
Floating Charging Voltage |
27VDC |
Charging Algorithm |
3-Step |
Max. PV Array Power |
5600W |
Max. PV Current |
13A |
Nominal PV Voltage |
350VDC |
Start-up Voltage |
55VDC ± 10VDC |
PV Array MPPT Voltage Range |
55VDC~350VDC |
Max. PV Array Open Circuit Voltage |
350VDC |
Max Charging Current |
140Amp |
Safety Certification |
CE |
Operating Temperature Range |
0℃ to 55℃ |
Storage temperature |
-15℃~ 60℃ |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
Dimension (D*W*H), mm |
400x250x89 |
Net Weight, kg |
7.85 |
